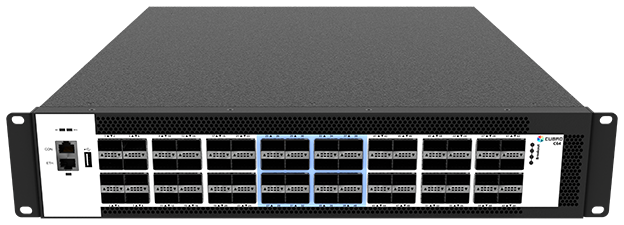

Cubro aggregator C64
  • Filters and load-balances traffic from 1, 10, 25, 40 or 100 Gbps links to multiple monitoring tools
  • Aggregates multiple 1 or 10 Gbps links to 25, 40, or 100 Gbps monitoring tools
  • 16 x 40/100 Gbps (QSFP/ QSFP28) with break-out to 4 x 10G/25G
  • 48 x 40/100 Gbps (QSFP/QSFP28)
  • Up to 7000 parallel rules
  • IPv6 support
  • No additional port licensing fees or software feature licensing. All features and applications included in the unit price.
  • 2-year base warranty period

The Cubro Aggregator C64 is a high-performance network packet broker that aggregates, filters, duplicates, and load balances network traffic to security, monitoring and management tools based on 7000 possible rules. The Aggregator C64 supports OSI Layer 2, Layer 3 and Layer 4 header modifications including stripping, adding, and modifying VLAN tags, MAC addresses, IP addresses and Port numbers.


Functions & Benefits of Aggregator C64

  • 40G & 100G Aggregation (n:1, 1:n; n:n)
  • Easy to configure via secure Web GUI, CLI and REST API
  • Load balancing: L2 / L3 / L4 hash-based, session aware load balancing
  • Filtering on multiple parameters, including VLAN tags, IP addresses, TCP / UDP port numbers and much more.
  • Header Modification of OSI Layer 2 to 4
  • SNMPv2c and SNMPv3 support
