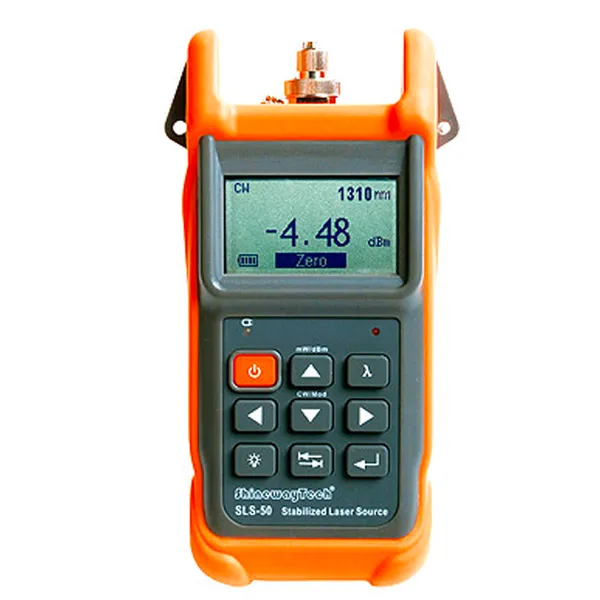

SLS-50 Advanced Laser Source
The SLS-50 Advanced Laser Source Series can generate stable and precise optical signals at multiple wavelengths. It can conduct automatic wavelength identification and switching. 6dB Adjustable Power Output Range Output Power can be adjuste
- UK & Ireland stock and lead times
- Demo & loan units, plus rent-vs-buy options
- Engineer-led pre-sales and on-site support
View full datasheet & specs → · Fibre Test: OTDR, Loss & Inspection
Overview
The SLS-50 Advanced Laser Source Series can generate stable and precise optical signals at multiple wavelengths. It can conduct automatic wavelength identification and switching.
6dB Adjustable Power Output Range
Output Power can be adjusted at minimum 0.01dB/step within a range of 6dB (NA at 650nm).
Automatic Wavelength Switch
SLS-50 can interoperate with the OPM-50, which can automatically identify input wavelength and switch to the corresponding test mode. This feature greatly reduces the workload at both ends of the fibre and avoids potential user error. The user can select the working wavelength and SLS-50 will automatically toggle between working wavelengths.
Remote Reference Value Setting
SLS-50 can transmit encrypted signalling with power parameters through tested fiber to a far-end OPM-50 as a reference for precise link loss measurement.
Compatible with FTTx
The SLS-50 generates highly stable signals at 1310nm, 1490nm, 1550nm and 1625nm wavelengths, compliant with Passive Optical Network (PON) and FTTx standards.
Direct LCD Display of Output Power
The SLS-50 output power can be directly displayed on its LCD screen for easy reference.
For detailed product specifications check out the product data sheet.
Specifications are indicative, please confirm current configuration with our team.
