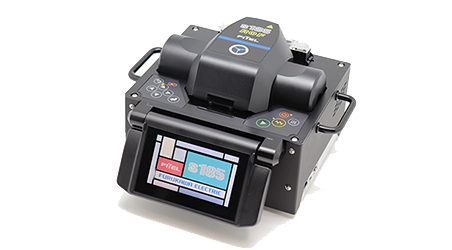

FrameWorks AIFITEL S185 Splicer
High-end Fusion splicer S185ROF for LDF splicing
- UK & Ireland stock and lead times
- Demo & loan units, plus rent-vs-buy options
- Engineer-led pre-sales and on-site support
Download datasheet (PDF) → · Fibre Deployment: Splicing, Cleaving & Blowing
Overview
The FITEL S185ROF has three electrodes (ROF: Ring of Fire®) instead of the standard two electrodes. This arc-discharging makes the plasma field uniformly wider and enables splicing large diameter fibers up to 800μm cladding diameter. This unique arc-discharging can heat fibers uniformly and reduce the splice loss of the fibers with dissimilar cladding diameters. By optimize each part, exceptional performance and a compact design are achieved.
Application
- Fiber laser
- Medical
- R&D
Features
- Low splice loss
- Compact size
- LCD touch panel provides easy operation
- Fiber clamps land gently to prevent damage to the fiber
- Remote control by Wi-Fi communication
Specifications are indicative, please confirm current configuration with our team.
