LAMTA - RF Test Position

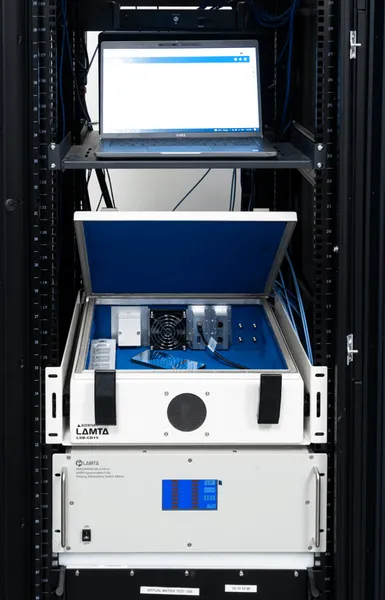

The LAMTA RF Test Position is a self-contained solution that is ideal for a smaller lab. It combines an RF shield box, RF attenuation equipment and control software to provide everything you need to start testing.

4-Channel RF Test Position

• 4-channel RF Attenuation Array with a frequency range of 0.5 to 7.5 GHz and attenuation range of 0 to 95 dB with 0.25dB attenuation step
• Controls the attenuation array to vary the signal strength on each RF path separately. Supports roaming and handover test cases and limited MIMO and Carrier Aggregation testing.
• Up to four RRU sources can connect to the LAMTA software-controlled attenuation array.
• Four (4) SMA multi-band antennas*. 2 x USB3.0, 2 x 1G Ethernet, 1 x AC power pass-throughs.

8-Channel RF Test System

A starter system for a small RF lab supporting up to (8) eight RF inputs and (8) eight RF test stations. Includes an 8x8 RF switch matrix and matrix control software which controls all 64 individual RF signal paths independently.

• Real-time power detection for all RF input ports
• LATMA software helps seamlessly recreate complex RF testing scenarios such as MIMO and Carrier Aggregation
• Up to eight RRU / RF source inputs and eight RF shield box outputs
• Compact form factor, mounts on a standard 19-inch rack

Full-sized Multi-Site RF Lab

LAMTA supports custom configurations for major RF lab operations. These can include:

• Hundreds or thousands of RF ports
• Many different types and quantities of attenuation equipment
• Any number of RF shield boxes
• Multi-location, multi-city
• Resource sharing and remote access
