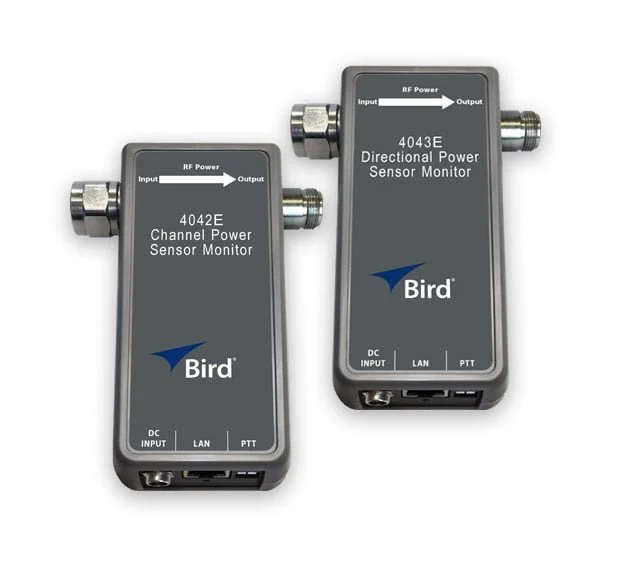

4042E & 4043E Ethernet RF Sensors

The 4042E and 4043E Ethernet RF sensors deliver continuous transmit path visibility into transmit path performance between site visits using standard Ethernet connectivity.

4043E | Transmitter output monitoring Monitors each transmitter individually. Measures forward power, reflected power, and VSWR to confirm every transmitter is producing expected output within a defined frequency range.

4042E | Combined and per-channel monitoring Monitors the combined RF output of multi-carrier systems, with per-channel and composite power and VSWR to identify insertion loss, combiner drift, or antenna and feedline issues at the site level.

RF Monitoring Measurement Types

RF monitoring can be implemented in different ways depending on where you need visibility in the RF path. Site design, system complexity, and operational goals all influence how measurements are made. Understanding these approaches helps ensure the right level of insight without unnecessary complexity.

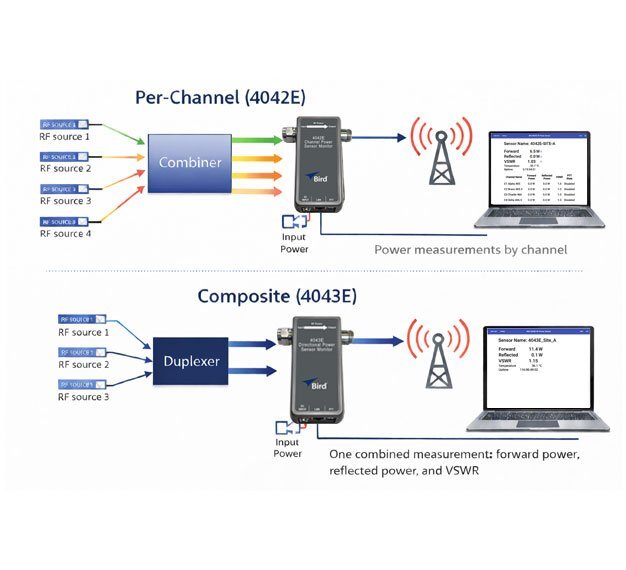

Channelized Monitoring

Focuses on individual transmitters or carriers. Each channel is measured independently, making it easier to isolate changes that may be hidden in a combined signal.

This approach is often used when:

Individual transmitter performance must be verified

Carriers operate at different power levels

Isolating a single source of change is a priority

Directional (Composite) Monitoring

Measures the combined transmit output at a single point in the system. Forward power, reflected power, and VSWR provide a clear view of overall transmit path health and antenna or feedline match.

This approach is often used when:

Multiple carriers are combined through a shared RF path

Site level performance is the primary concern

Simplicity and broad coverage are preferred

Using Both Approaches

Many systems use both channelized and composite monitoring to balance detail and efficiency. Channelized measurements help isolate individual changes, while composite monitoring provides a fast indicator of overall site health.
