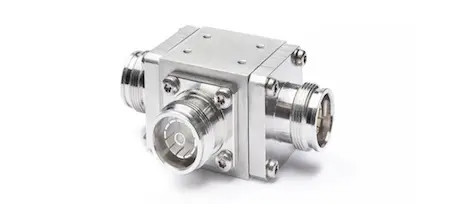

Low PIM Tapper, 4:1/6dB Power Divider, N Female (SP9-P241)
Part Number SP9-P241
Product Low PIM Tapper, 4:1/6dB Power Divider, N Female
Output split ratio 4:1/6.0dB
Output ref. to Input Level, Include Loss -Main/Branch 0.142857143
Output ref. to Input Level, Include Loss – Branch Flatness ±0.6
Frequency Range 350-1400MHz & 1710-2700MHz
Input VSWR ≤1.38@350-1400MHz, ≤1.22@1710-2700MHz
Power Handling (Input port) 200W CW/Avg., 2000W Peak
Intermodulation (IM3) ≤ -150 dBc @ 43 dBm X 2 (Typical -153dBc)
Temperature Range -35°C ~ +65°C
Connector N Female
Mounting Wall/Pole Mount
Application Indoor/ Outdoor (IP65)
Dimensions (w x h x d) 24.5 x 24.5 x 95mm
